Max. height 5.3m (17.4′)
Max. Load 150Kg (331 lb)
Safety ILS Inertia-lock
Work surface 1.7 x 1.85m (5.6 x 6.1′)
Folded height 1.54m (5′)
Winch 450Kg
Adaptor 0,5m Forks included
Weight 107Kg (236lb)

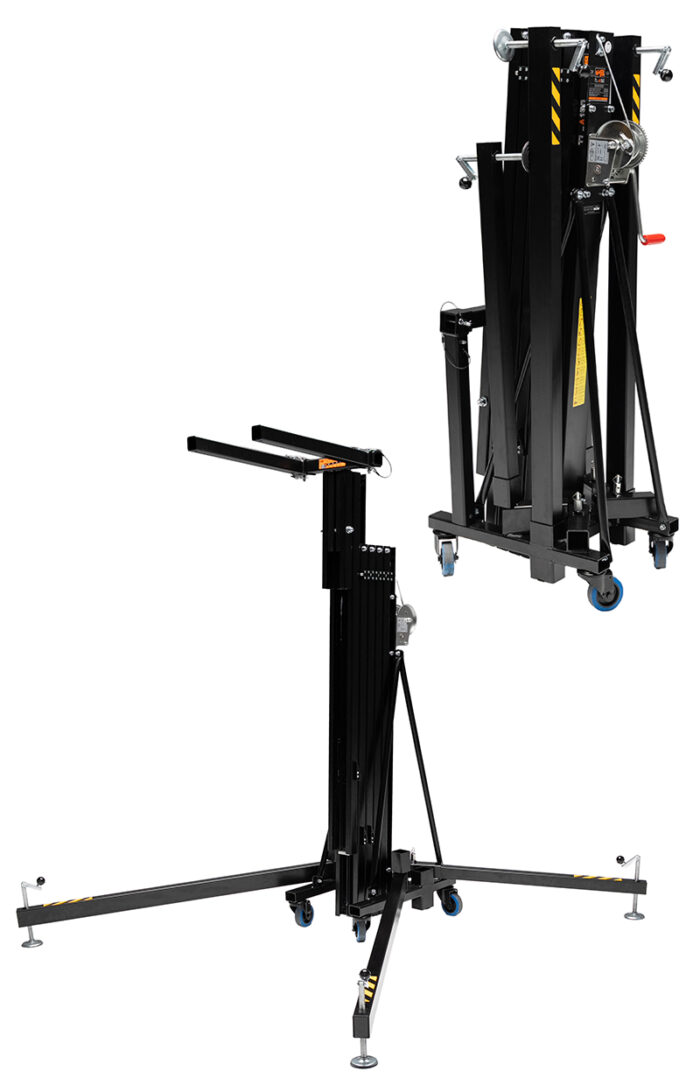

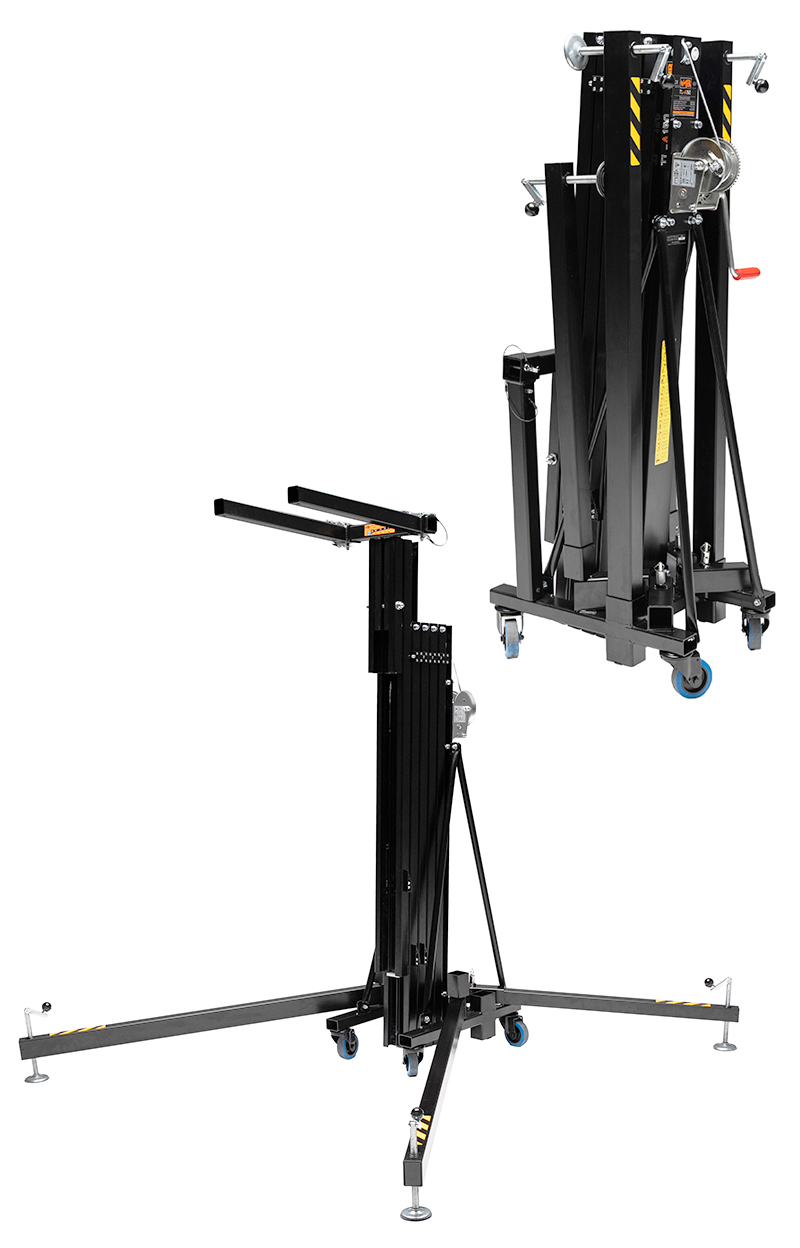

Lifter made with structural steel for the base and 6082-T6 aluminum alloy for the sections. Designed to lift loads from the ground, and keep them at high altitudes.

This lifting tower is very compact and easy to handle, it has 4 swivel wheels at the base. It fits through a door.

It has powerful stabilizers in the legs, to level the lifter in difficult terrains, with slight slope.

Black finish, with epoxy powder paint to the oven, which offers great resistance (The towerlift can be painted in the desired color, under prior request).

It has two adjustable steel load forks that support the load, either supported on top of it, or hung underneath.

VMB offers you a wide range of accessories, which combined with this lifter allows you to increase its unlimited number of applications. One of the most used accessories, for example, is the FAS-01, which is used to hang Line Array audio systems in a fast and effortless way.

The TL-A150 features the inertial pendulum ILS safety system. It also has the special SRS Retentor system, patented by VMB, which guarantees that the towerlift will raise the aluminum sections orderly, and most important: automatically.

VMB offers you a 2-year warranty and stock of spare parts for 5 years. In addition we have our own factory in Spain, where we offer service to review and repair your lifter.
