Max. height 6.5m (21.3′)
Max. Load 200Kg (441 lb)
Safety ILS (Inertial Lock System)
Work surface 2 x 2m (6.6 x 6.6′)
Folded height 1.98m (6.5′)
Adaptor Forks 54.5cm included
Weight 94.5Kg (208lb)

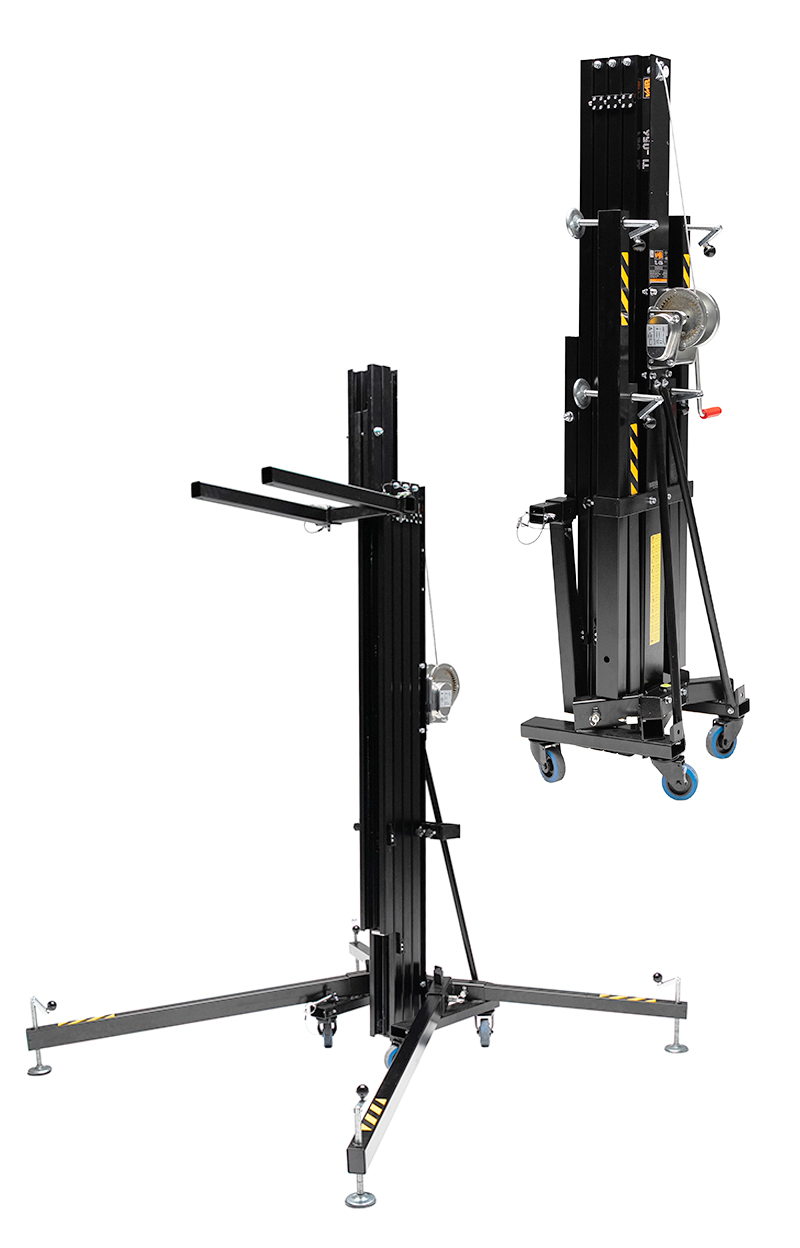

Lifter made with structural steel base and 6082-T6 aluminum alloy for the sections. Designed to lift heavy loads from the ground, and keep them at high altitudes.
This lifting tower is very compact and easy to handle, it has 4 swivel castors on the base and can fit through a door.
Powerful stabilizers in the legs, to level the lifter in difficult terrains, with slight slope.
Black finish, with epoxy powder paint offering great resistance.
It has two adjustable steel load forks that support the load, either supported on top of it, or hung underneath.
VMB offers you a wide range of accessories, which combined with this lifter allows you to increase the number of applications. One of the most used accessories, for example, is the RH-2 transport kit, which serves to tilt the lifter, horizontally and make the transportation in vans, trucks, etc. easier.
The TL-056 features the inertial pendulum ILS safety system. It also has the special SRS Retentor system, patented by VMB, which guarantees that the towerlift’s aluminum sections will rise in order, and most importantly: automatically.
VMB offers you a 2-year warranty and stock of spare parts for 5 years. In addition we have our own factory in Spain, where we offer service to review and repair your lifter.
